Q100631: Licensing UI not appearing in Modo 15 with a 10th (Ice Lake), 11th (Rocket Lake) or 12th (Alder Lake) Generation Intel CPU

Follow

SYMPTOMS

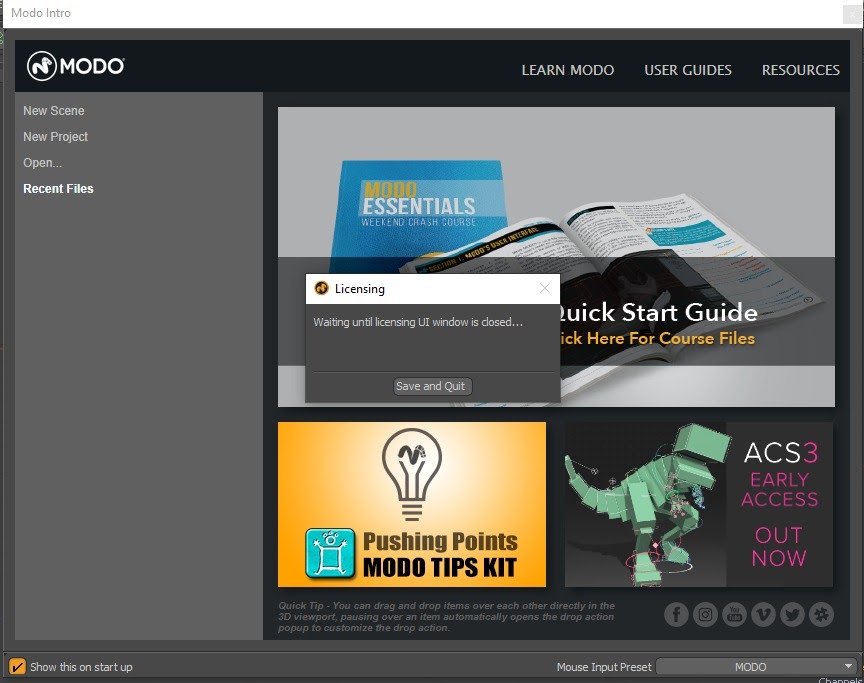

When launching Modo 15 and selecting “Launch Licensing App” to activate your login-based license, the pop-up window “Waiting until licensing UI is closed” appears but the Licensing App does not open.
This issue happens with Windows machines using an Intel 10th Gen (Ice Lake), 11th Gen (Rocket Lake) or 12th Gen (Alder Lake) CPU.







RESOLUTION

This bug has been fixed from Modo 16.0v3 onwards.  You can download and install Modo 16.0v3 at: Q100595: Download links for previous Modo versions

If you do not have access to 16.0v3 or above, please use the workaround steps below to resolve this issue.

WORKAROUND

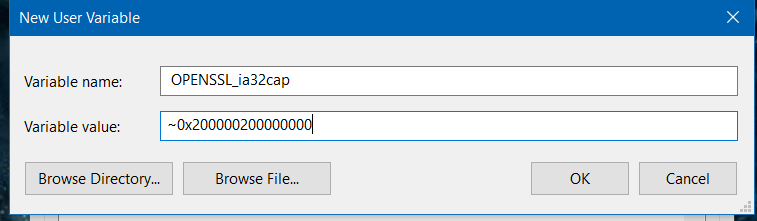

You can set the following environment variable to correct the issue:

OPENSSL_ia32cap=~0x200000200000000

You can do this by accessing Control Panel > System > Advanced System Settings > Environment Variables… It’s possible that you may have to restart the machine after adding the environment variable for it to take effect.


The variable disables bits 33 and 54, and from the OpenSSL documentation, shouldn’t cause any security issues as it's just disabling processor capabilities. The documentation for the variable can be found in the Further Reading section below.

Further help on setting Environment Variables can be found here:
Q100015: How to set environment variables

If you are experiencing further issues, please contact us with; your system specs, as much information about your OS and the steps you have taken, we can then add you and your info to the reported bug.

You can also provide us with a System Report of your machine in your Support ticket:Q100520: Obtaining operating system reports for hardware specs to send during Foundry Support investigations

For more information on how to do this, please see the following article: Q100064: How to raise a support ticket

Further Reading

Please view the following link for more information on the OpenSSL documentation.

You can also view additional information about the Intel OpenSSL* SHA Crash Bug here.

View more information on our Knowledge Base article: Q100015: How to set environment variables.
More information about login-based licensing for Modo is available in the following articles:
