SUMMARY
This article is a guide on how to add the Items mode button back into Modo’s UI.
MORE INFORMATION
Prior to the release of Modo 12, users could enable the Items selection tool by selecting the Items button in Modo’s UI.
The Items button was removed to clarify the difference between Component and Items selection modes. When Component selection is disabled, Items selection is re-enabled.
If you would like to re-add the Items selection button to the UI, please follow the steps below:
-
Select System > Form Editor and then enable the Find Form button, with this enabled select the Polygons button above the 3D viewport.

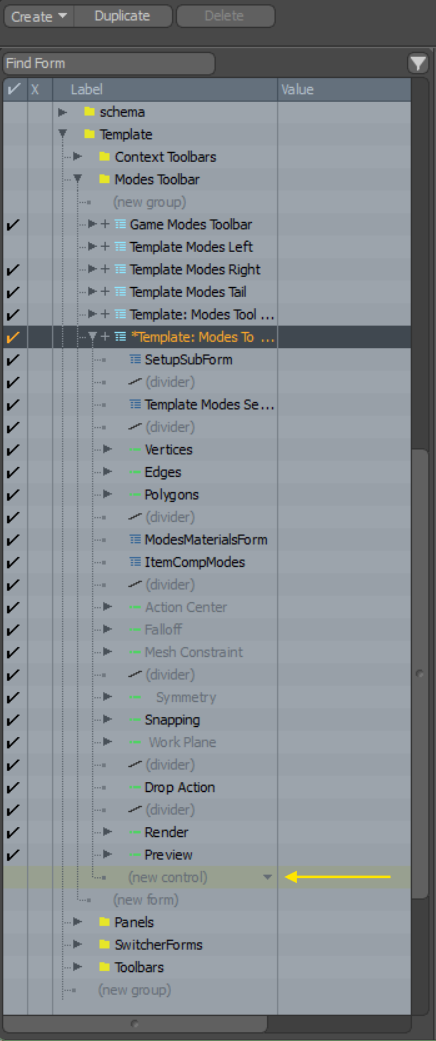

- This will then take you to its location within the Form Editor, scroll down, and within the Modes Toolbar group select (new control) > Add Command…
-
After doing this an Add Command to a Form window will appear, within this window type the following command:
select.typeFrom "item;center;edge;polygon;vertex;ptag" [1]
Then select OK.
An Item label will then be created within the Form Editor, drag this, and place it below the Polygons label. After doing this an 'Item' button will appear within the UI just above the 3D viewport.
While in Items mode, you can select and transform entire layers.
For a video example of how to add this button, please check the Add Item Mode Button to Modo 12 UI tutorial created by PixelFondue.
FURTHER HELP
If you encounter any issues during these steps, please create a support ticket so we can assist you further.
For more information on how to do this, please see the following article: Q1000064: How to raise a support ticket.
