Q100296: How to check your network speed

Peter Coleman

Updated : September 20, 2024 11:52

Created : January 23, 2017 12:28

SUMMARY

This article covers how you can check the speed of your network when required, for example for playback performance troubleshooting.

MORE INFORMATION

macOS and Windows:

1) Download the LAN Speed Test from the link below for your operating system:

http://www.totusoft.com/lanspeed1

2) Install and run the LAN Speed Test

3) Under Folder browse to a directory of the network drive you are testing. This should be the network drive where you are planning to host your footage used for playback.

4) Select a Packet Size using the sliders (for example 50MB) and click Start Test:

Results: When the test has ended you will see the writing and reading speeds for the network drive, as below:

Linux:

1) Go to Applications > Utilities > Disks.

2) Select the drive to test.

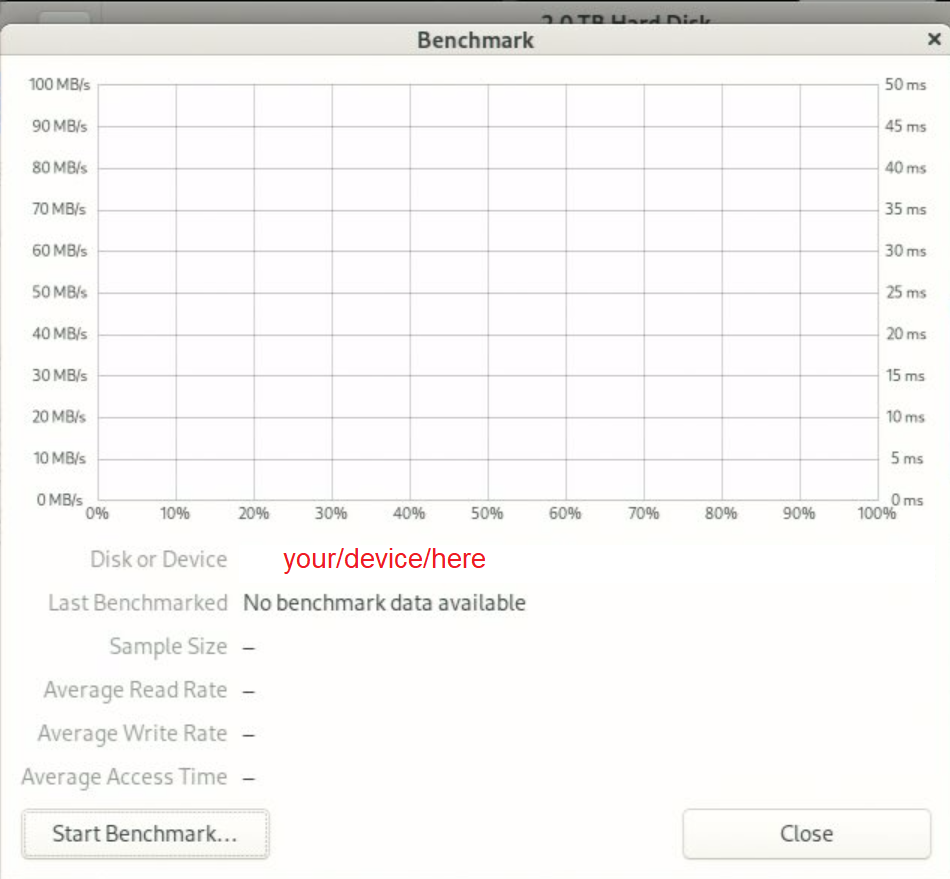

3) Open the options dropdown and select Benchmark Disk...

4) Run the benchmark.

 The results should display the drive speeds.

 NOTE: If you are experiencing playback issues please refer to the following troubleshooting article: Q100297: Real-time playback troubleshooting
